CM14-AAK Endress-Hauser Việt Nam - Tăng Minh Phát Việt Nam

    • CM14-AAKApplication

      Liquiline CM14 is a 4-wire transmitter with a compact design for mounting in control panels or cabinets. Possible areas of application are wastewater treatment, water preparation and monitoring of drinking water, ion exchangers and surface water monitoring.


      Sensors for pH/Redox, conductivity and oxygen record the measurement values at the site. These are transmitted digitally to the Liquiline CM14 transmitter using Memosens technology.
      The transmitter converts the signal into an 0/4 to 20 mA signal. In addition to this, temperature can be output as a second current signal. Two limit relays enable monitoring of signals for minimum,

      Application example

      1 Assembly with sensor (please order armature separately)
      2 Measuring cable
      3 Transmitter Liquiline CM14
    • Technical data

      Input typeDigital sensor input Memosens
      Cable typeMemosens data cable CYK10 or sensor fixed cable, each with cable end sleeves or M12 round-pin connector
      Cable length10 m (max. 100 m) / 33 ft (max. 330 ft)
      Output signal2 × 0/4 to 20 mA active, potentially isolated from one another and from the sensor circuit
      LoadMax. 500 Ω
      Linearisation/ transmission behaviourLinear
      Status output"Open collector"
      Relay output
      Relay type2 changeover contacts
      Switching current
      Max. 0.5 A @ 24 V DC
      max. 0.5 A @ 253 V AC
      min. 100 mW (5 V / 10 mA)
      Cable cross sectionmax. 2.5 mm² (14 AWG)
      Power supply
      Supply voltageWide range power supply 24 to 230 V AC/DC (–20 % / +10 %) 50/60 Hz
      Performance characteristics
      Response timeCurrent output t90 = max. 500 ms for an increase from 0 to 20 mA
      Reference temperature25 °C (77 °F)
      Resolution current output>13 Bit
      Installation conditions
      Mounting location
      Panel, cutout 92 × 45 mm (3.62 × 1.77")
      Max. panel thickness 26 mm (1")
      Mounting orientation
      The mounting orientation is determined by the display readability
      Max. angle of view +/– 45° of the display center axis in each direction.
      Ambient temperature range–10 to +60 °C (14 to 140 °F)
      Storage temperature range–40 to +85 °C (–40 to 185 °F)
      Electromagnetic compatibilityInterference emission and interference immunity as per EN 61326-1:2006, class A for industrial use
      Ingress protection
      Front: IP65 / NEMA 4X
      Body: Protection against contact IP20
      Relative humidity5 to 85 %, non-condensing
      Mechanical construction
      Weight0.3 kg (0.66 lbs)
      MaterialsHousing, body: Polycarbonate Front membrane: Polyester, UV resistant
      Terminalsmax. 2.5 mm² (14 AWG) Mains, relays
      Certificates and approvals
      CE mark
      Declaration of conformity
      The product meets the requirements of the harmonized European standards. It thus complies with the legal requirements of the EC directives. The manufacturer confirms successful testing of the product by affixing the CE symbol.

      Dimensions (in mm)

      Installation according to instruction manual

      Electrical connection

      a) Sensor

      pH measurement

      Orbisint CPS11D
      Dimensions in mm
      Installation according to instruction manual
      Technical data Orbisint CPS11D (glass electrode)
      Measuring variablespH value, temperature
      Measuring ranges
      pH kit 1:1 to 12 pH
      pH kit 2: 0 to 14 pH
      Process temperature
      pH kit 1: –15 to 80 °C (5 to 176 °F)
      pH kit 2: 0 to 135 °C (32 to 275 °F)
      Process pressure
      pH kit 1: 0 to 6 bar
      pH kit 2: 0 to 16 bar
      Minimum conductivityMin. 50 μS/cm
      Orbipac CPF81D
      Dimensions in mm
      Installation according to instruction manual
      Technical data Orbipac CPF81D (glass electrode)
      Measuring variablespH value, temperature
      Measuring range0 to 11 pH
      Process temperature0 to 80 °C (32 to 176 °F)
      Process pressure0 to 10 bar @ 80 °C (0 to 145 psi @ 176 °F)
      Glass impedance150 MΩ @ 25 °C (77 °F)
      Minimum conductivityMin. 50 μS/cm

      Conductivity sensors, conductive

      Condumax CLS15D

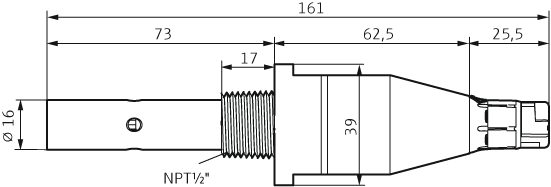

      Dimensions in mm
      Installation according to instruction manual
      Technical data Condumax CLS15D
      Measuring variableConductivity, temperature
      Measuring ranges
      Conductivity kit 1: 0.04 to 20 μS/cm, k = 0.01 cm–1
      Conductivity kit 2: 0.1 to 200 μS/cm, k = 0.1 cm–1
      Process temperature–20 to 120 °C (–4 to 248 °F)
      Process pressure12 bar @ 20 °C (174 psi @ 68 °F)
      Maximum measured error2 % of the measured value
      Repeatability0.2 % of the measured value + 3 nS/cm

      Conductivity sensors, inductive

      Indumax CLS50D

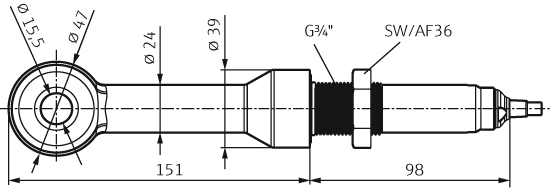

      Dimensions in mm
      Installation according to instruction manual
      Technical data Indumax CLS50D
      Measuring variablesConductivity, temperature
      Measuring range2 μS/cm to 2000 mS/cm (uncompensated)
      Process temperature–20 to 125 °C (–4 to 260 °F)
      Process pressureMax. 20 bar (290 psi)
      Maximum measured error
      –20 to 100 °C (–4 to 212 °F): ±(5 μS/cm + 0.5 % of the measured value)
      >100 °C (212 °F): ±(10 μS/cm + 0.5 % of the measured value)
      Temperature response timeApprox. 7 min

      Oxygen sensors

      Oxymax COS51D

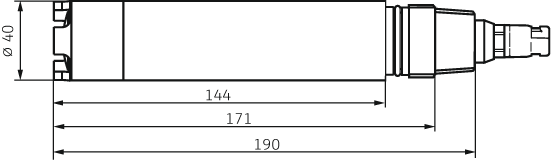

      Dimensions in mm
      Installation according to instruction manual
      Technical Data Oxymax COS51D
      Measuring variableDissolved oxygen, temperature
      Measuring range
      0.01 to 100 mg/l;
      0.00 to 1000 % SAT;
      0 to 2000 hPa
      Response time
      t90: 3 minutes
      t98: 8 minutes (each @ 20 °C / 68 °F)
      Process temperature–5 to 50 °C (20 to 120 °F)
      Process pressure
      Max. 10 bar (145 psi)
      Underpressure operation is not permissible
      Maximum measured error±1 % of measured value
      Repeatability±1 % of measured value
